Reliable detailers with quality results

Providing Expert Service From Start To Finish of Every Project


About Us


Our Services

We keep our customers happy by providing:

  • Clear, detailed and easy to read drawings
  • Customized reports and templates
  • Experience in BIM coordination
  • NC & DXF files for beam lines and plate burners
  • Electronic files for material handling software (ie: Fabtrol or Fabsuite etc...)
  • Clear RFI's using sketches and proper grammer.
  • First time quality
  • Up to date in latest version of Tekla Structures 3D modeling software


Our Projects

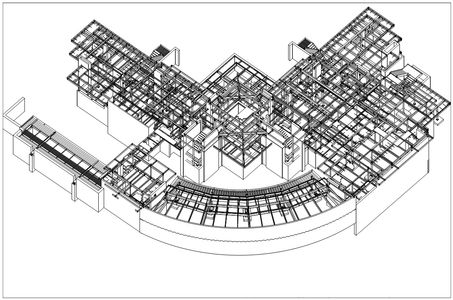

We have experience detailing all types of steel construction projects from Industrial all the way down to miscellaneous detailing.  No projects are too large or too small.  All projects are detailed 100% in the latest version of Tekla Structures 3D modeling software.


About Us

Structural Ink was launched by Casey Naegle in 2010.  He has since grown it in size and now employs 13 drafters all on the latest version of Tekla Structures.
